LCD-C Series

Easily adjust to a comfortable viewing position
Equipped with USB Type-C® for charging your laptop

This LCD monitor has a freestyle stand that can be adjusted to your comfortable height and angle. If your computer has a USB Type-C port, you can simultaneously output video signals to the LCD monitor and deliver power to your laptop with just one cable. It also features 2-port USB hub that allows you to keep devices such as a mouse, keyboard, or webcam permanently connected to the product.

Model Number Specifications Price Instruction Mannual
LCD-C241DB Black G Open Price More
LCD-C271DB Black G Open Price More
LCD-C242SDB Black G Open Price More
LCD-C272SDB Black G Open Price More
LCD-C242SDB-F Black G Open Price More

Main Features

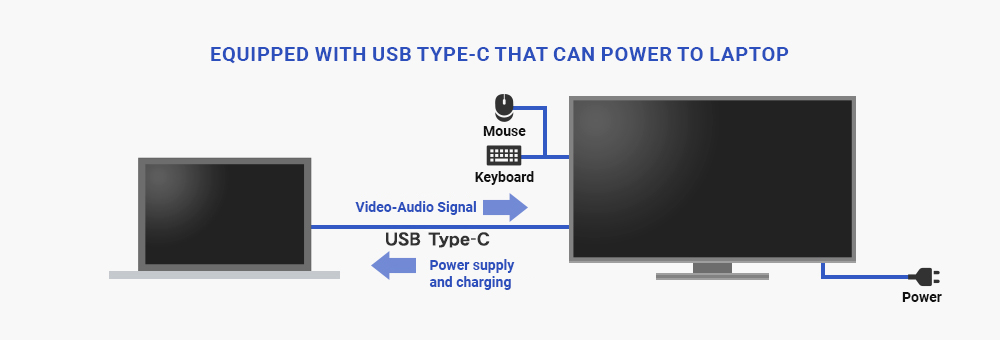

Using USB Type-C, smart connection with 1 cable

Using USB Type-C cable allows you to handle video, audio and power delivery to your laptop and charging with a single cable, minimizing the number of outlets required.
It also features two-port USB hub, enabling you to connect peripherals such as mouce, keyboards and webcams to this product instead of your laptop. With this monitor, you can take it with you not only for meetings but also for business trips and outings—just unplug one cable and you're ready to go.In addition, it is also equipped with HDMI and DisplayPort, helping you connect to many different devices.
※ For video and audio input via USB Type-C, your device must have USB Type-C port that supports DisplayPort Alt Mode.
※ For power delivery and charging via USB Type-C, your device must have USB Type-C port that supports USB Power Delivery.
※ Maximum laptop power supply capacity up to 65W、USB HUB is up to 900mA per port and USB Standard-A is up to 5V/1A.

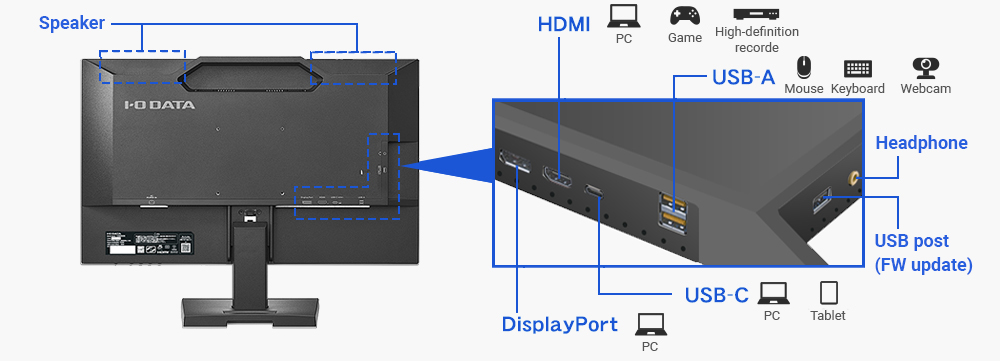

Equipped with USB port capable of power delivery

USB Type-A
Is equipped with 1 "USB 1A FW UPDATE" port capable of 5V/1A output, 2 USB-A ports "USB HUB" capable of 5V/0.9A output. It can use supply power to streaming devices such as "Fire TV Stick" (※1) and charge smartphones (※2) without a separate AC adapter, keeping your desk tidy.
※1 When connecting streaming devices like the "Fire TV Stick", use the "USB 1A FW UPDATE" port
※2 While transferring data via the "USB-C" port, you can charge a smartphone connected to the "USB-A" port.
Depending on your smartphone's specifications, the "USB 1A FW UPDATE" port may not charge your smartphone or may charge it at a slower speed

USB Type-C
It features one USB Type-C port that supports USB Power Delivery and can charge devices such as laptops.
Not only laptops, but also USB Power Delivery-compatible tablets can be charged

Built-in speakers

Enjoy sound without external speakers
※ Audio output requires a device that supports sound transmission

HDMI and USB Type-C cables included as standard

HDMI cable (1.5 m) and USB Type-C cable (1.5 m) are included as standard accessories, so you can start using the device immediately after purchase

Three-sided frameless design for a neat and clean look & reduced resin usage

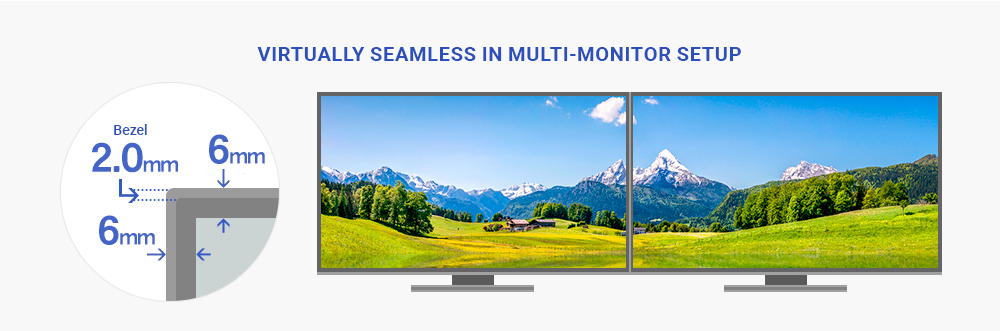

Perfect for multi-monitor setup with Ultra-Slim 3-side frame

This display features a flat, frameless panel with no gap between the screen and the frame.
The ultra-slim bezel offers a clean, modern look, which ideal for multi-monitor setups.
It is stylish and modern design fits perfectly in both office environments and personal spaces.
Thoughtfully crafted stand and neck design

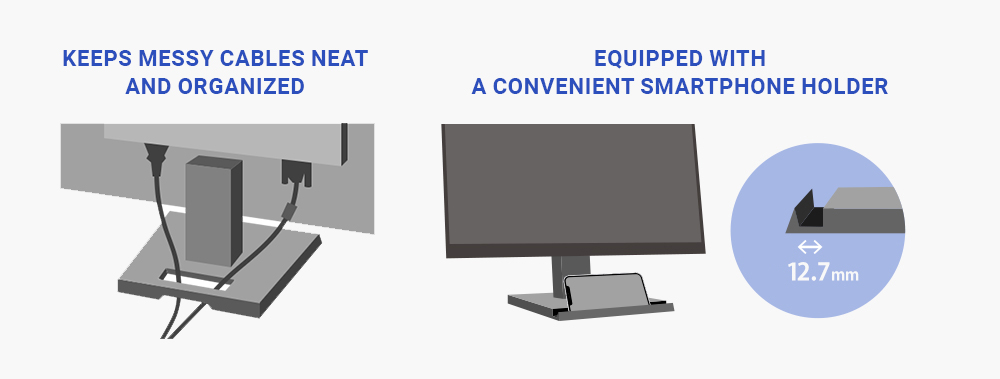

Smartphone Stand & Cable Holder Base!

Features a base with a cable holder for neatly organizing cables.Additionally, there is a stand at the front where you can prop up your smartphone. The design is simple yet packed with thoughtful details.
Features a power-saving function

Check the wattage in the brightness settings!

You can check the wattage you wish to reduce and set the brightness.
This feature is extremely useful when setting numerical targets for reducing and using electricity.
For example, reducing the brightness to level X allows you to reduce power consumption by yW

Cuts unnecessary power consumption by syncing with your PC's power settings!

You can automatically turn off the LCD monitor based on the state of your computer.
This feature allows you to choose your preferred power saving settings from 2 modes.
1. When the computer's power is tuened off, it enter a power-saving state and automatically resume operation when the computer is turned on.
2. After a set period in powe-saving mode, the LCD monitor turns off and requires manual restart.
Enviromentally friendy cycle design

・Resource-friendly
We use recycled paperboard for individual packing boxes.
Additionally, we only include the cables that meet your specific needs with the product.
・Eco-friendly & easy-to-understand manuals
We have reduced the size of the instruction manual included with the product and expanded the online manual.
It makes it more convenient for customers to use and reduce resources.

Vibrant from any angle! Features a wide-viewing-angle ADS panel

Wide-viewing-angle ADS panel

It features ADS (Advanced Super Dimension Switch) panel with a wide viewing angle of 178°in all directions. The color and contrast remain consistent regardless of the viewing position or angle, ensuring a clear image from every perspective.

"ADS panel" are versatile and easy to use for a wide range of applications because they exhibit minimal characteristic variation. If you're unsure about which LCD panel to choose, we recommend selecting an LCD monitor featuring "ADS panel".

Eye-friendly, stress-free design

"Blue Reduction 2" reduces blue light while suppressing yellow color

This product features "Blue Reduction 2" function that reduces blue light directly on the screen.
Our previous "Blue Reduction" feature only cut blue light, maming yellow tones to appear more prominent when the value was increased. With "Blue Reduction 2", we suppress yellow tones while still cutting blue light component, allowing you to use the blue light reduction feature more naturally.
You can comfortably use the screen itself to reduce blue light without purchasing special glasses or films.

Flicker-Free design eliminates backlight flickering to reduce eys strain

Conventional LCD monitors adjust the brightness level of the LED backlight by rapidly flashing the LEDs themselves (PWM dimming method).
Therefore, it is said that screen flicker can be perceived. Even if you don't notice the flicker, prolonged computer use can strain your eyes. However, this product has "Flicker-free" design that does not rapidly blink the LEDs. Instead, it adjusts brightness by modifying the current level, thereby eliminating flicker.

"Enhanced Color" feature makes colors more vivid

It features "Enhanced Color" for dynamic contrast and vivid expression. You can adjust the settings according to the usage scenario and content, such as vibrant visuals for digital signage and photos or true-to-life colors for PC use.

Adjustable with 10 levels

Can be adjusted as desired with 10 levels

"Screen Mode" enables video display according to the content

Presets are avialable for settings suited to each type of content.
Simply select the mode to enjoy beautiful picture quality for each content.
You can also adjust the picture quality in each mode according to your preferences.

"Super-Resolution Technology" produces more clear and beautiful images

"Super-Resolution Technology" beautifully restore low-resolution images

Blurring occurs when displaying SD-quality video (720×480) from sources like DVD on a high-resolution LCD monitor because the original video signal undergoes enlargement processing.
This blurring is improved by “Super-Resolution Technology” which significantly enhances resolution, allowing images to be reproduced with clarity.
In addition, the Super-Resolution settings can be flexibly adjusted to user preferences.

Multi display boosts work efficiency

Expanding your workspace by adding a display to your computer lets you work on two screens at once and increase your productivity.

You can also mount VESA-compatible display arms.

Compatible with the universal "VESA" mounting standard for display arms and stands. It mounts to 100mm × 100mm display arms and stands!
※ Please check the load capacity of the mounting arm or stand.

Exclusive features of LCD-C242SDB/C242SDB-F & C272SDB

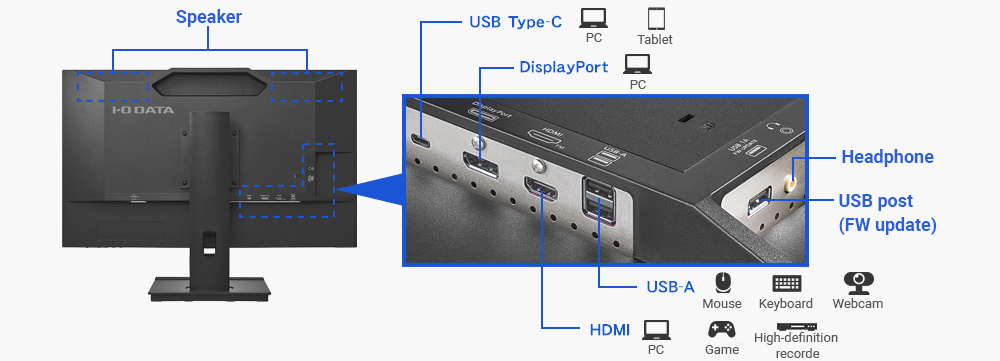

Equipped with a wide range of connectivity options

Equipped USB Type-C, DisplayPort, HDMI & USB HUB

Equipped with USB Type-C and DisplayPort for easy connection to PCs, and HDMI for seamless integration with audiovisual equipments
Additionally, it features USB hub (2× USB Type-A), making it convenient for connecting devices like a mouse, keyboard and webcam.

※ The USB hub is only compatible when this product is connected to laptops via USB Type-C cable.

Supports high-speed USB 5 Gbps transfer !

The built-in USB hub (2× USB Type-A) supports USB 5Gbps (USB 3.2 Gen 1), enabling high-speed data transfer for connected devices.

Equipped with USB port capable of power delivery

USB-A support USB BC1.2
Equipped with "USB 1.5A FW UPDATE" port supporting 5V/1.5A output. It can be used to charge smartphones and power streaming devices like Fire TV Sticks. This eliminates the need for an external AC adapter and helps to keep your desk tidy.

USB Hub
It includes a USB HUB (2× USB-A ports) that is capable of outputting 5V/0.9A.

USB Type-C
Equipped USB Type-C port supporting USB Power Delivery, capable of powering devices such as laptops. It can deliver up tp 65W of powerand charget not only laptops but also tables that support USB Power Delivery.

Equipped standard speaker

Enjoy sound without external speakers

HDMI and USB Type-C cables included as standard

Includes standard HDMI and USB Type-C cables ready to use right out of the box

Supports 100Hz! Reduced motion blur for enhanced visual clarity
Images refresh approximately 1.6 times faster than on a typical 60Hz monitor.
Smoother screen scrolling reduces motion blur when viewing websites, PDFs and other documents, improving visibility.
Even fast-moving footage is smooth to play back.
※ Requires a device that supports 100Hz output.
※ Image for illustrative purposes only

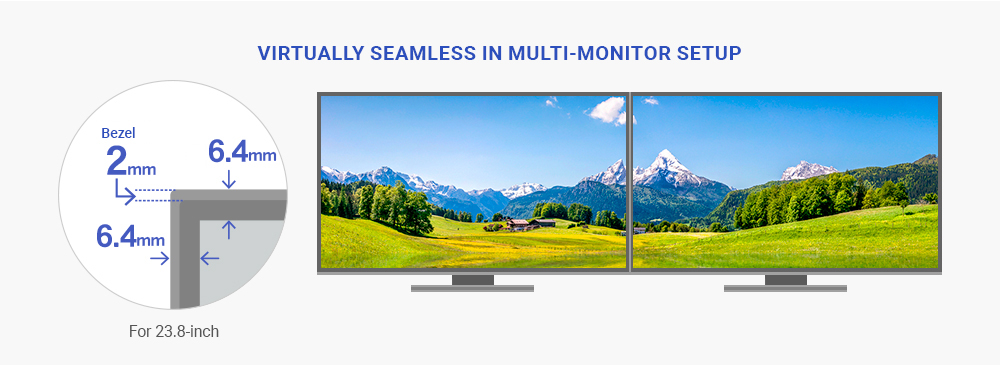

Three-sided frameless panel

Sleek and stylish frameless panel

This display features a flat, frameless panel with no step between the screen and the frame. The ultra-slim bezel offers a clean, modern look that’s ideal for multi-monitor setups, enhancing both aesthetics and usability. Its stylish design blends seamlessly into any office environment, making it a perfect choice for professional workspaces.

Screen Size Bezel Width Hidden Area
27-inch Top: 2.5mm / Left right: 2.6mm Top: 7.6mm / Left right: 7.6mm
23.8-inch Top: 2.0mm / Left right: 2.0mm Top: 6.4mm / Left right: 6.4mm

LCD-C242SDB-F features

Freestyle stand with adjustable height and angle!

Place your laptop under the monitor!

Its height and angle can be adjusted to be easy on the eyes. This makes it an effective way to reduce eye and shoulder strain and prevent a stiff neck.
With a wide range of motion, it is particularly space-efficient and comfortable. It can accommodate a 14 inch laptops underneath the monitor.
Adding the monitor to your laptop expands your workspace, allowing you to work across a dual-screen environment and increase your productivity.
※ Laptop size is approximate

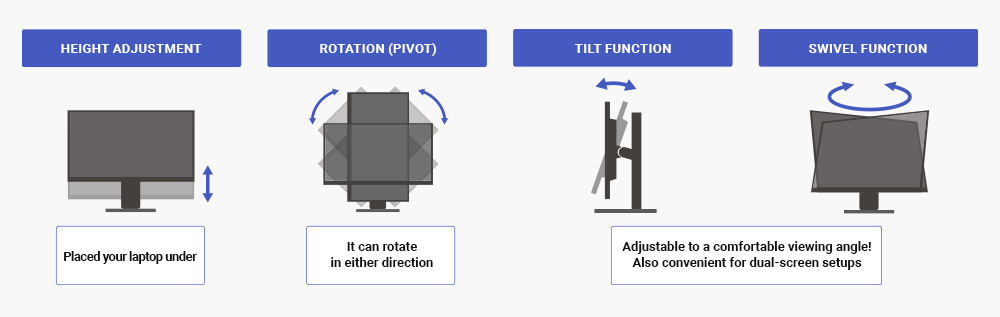

"Four functions" that can be adjusted to your preferred position

Assembling the stand is easy! One-Touch Installation

The included stand can be attached with a single touch. No traditional screw installation is required, allowing for easy assembly.

Supported Model

Supported PCs PC Window, Mac, Chromebook
Supported OS All OS, because it does not depend on the OS (except for OS that is not supported by the main unit)
Supported Game Consoles Nintendo Switch, PS5, PS4 Pro, PS4, XBOX Series X, XBOX Series S

Specifications

Model Number/ Cabinet Color LCD-C241DB/Black
Panel Type TFT 23.8-inch wide/ADS
Panel Surface Treatment Anti-glare
Maximum Display Resolution 1920×1080
Pixel Pitch (mm×mm) 0.2745(H)×0.2745(V)
Display Area (mm×mm) 527.04(H)×296.46(V)
Maximum Display Colors Display Colors up to 1,677,000 colors
Viewing Angle Vertical Veiwing Angle: 178°
Horizeontal Viewing Angle: 178°
Maximum Brightness (Standard) 250cd/㎡
Contrast Ratio (Standard) 1000:1
Response Time 5ms[GTG]
※ 75Hz / Overdrive level 2 setting
Horizontal Scan Frequency (kHz) HDMI:31.5 ~ 83.9
DisplayPort:31.5 ~ 83.9
USB Type-C:31.5 ~ 83.9
Vertical Scan Frequency (Hz) HDMI:59.9 ~ 75.0
DisplayPort:59.9 ~ 75.0
USB Type-C:59.9 ~ 75.0
Maximum Refresh Rate (Hz)
"At Maximum Resolution"
75
Video Input Ports HDMI×1, DisplayPort×1, USB Type-C×1
USB Ports Upstream USB Type-C×1:USB 2.0, DisplayPort Alt Mode,
Power Delivery up to 65W(5V/3A, 9V/3A, 15V/3A, 20V/3.25A)
Downstream USB Std-A ×2: USB 2.0 (Maximum 5V/0.9A per port, for HUB)
USB Std-A ×1:USB 2.0(Maximum 5V/1A, for maintenance)
Audio Input Output Audio Input -
Speaker 2W+2W (Stereo)
Headphone Jack Stereo mini jack φ3.5mm
Audio Output -
Rated Voltage AC100~240V 50/60Hz (Built-in power supply)
Power Consumption Maximum 116W
During Normal Operation (On mode) 10.4W
Annual Electricity Consumption 34.5kWh
Standby Mode 0.5W
Power Management VESA DPM Compatible
Plug and Play VESA DDC2B
Dimensions
(W×D×H)
With Stand Approximately 540(W)×215(D)×407(H)mm ※ Excluding protruding parts
No Stand Approximately 540(W)×51(D)×328(H)mm ※ Excluding protruding parts
Three-view drawing File PDF
Weight With Stand 4.6kg
No Stand 4.2kg
Tilt Angle Up: 20° Down: 5°
Swivel Angle -
Height Adjustment -
Pivot (Rotation) -
VESA Mount Interface ○(100mm×100mm)
Security Slot (Kensington Security Slot)
Package Weight (kg) and Dimensions(W×D×H) 6.1kg /601(W)×142(D)×440(H)mm
Operating Temperature Range When Operating: 0℃~+40℃
When Storage: -20℃~+60℃
Operating Humidity Range 20%~80% (No condensation)
Estimated Assembly Time Approximately 3 minutes (For one adult) Time from unpacking to installation when using the included stand
Various Certifications / Legal Regulations VCCI Class B, RoHS Directive Compliance (10 Substances), International Energy Sar Program, MEPS
Accessaory Power cable (1.8m),HDMI cable (1.5m), stand, instruction manual
Warranty Period Period Warranty Period: 3 Years
※ Including panel and backlight. However, the usage time is limited to 30,000 hours. Usage time refer to the total amount of time that the screen is illuminated. Standby and power-off are not included in the usage time.

※ The appearance and specifications are subject to change without notice for improvement purposes.
※ There may be dead pixels (pixels that do not light up) or bright spots (pixels that remain lit) on LCD panel. This is the specification of the LCD panel and due to the LCD panel itself having over 99.999% effective pixels and about 0.001% pixel defects or bright spots. It is not a malfunction or defect.
※ Annual power consumption is calculated based on International Energy Star Program standards.
Annual power consumption (kWh) = (0.35 × PON + 0.65 × PSLEEP) × 24 × 365 / 1000
※ About continuous use: This product is not designed for continuous 24 hours use. Please refrain from using this product continuously for 24 hours to prevent accelerating the wear and tear of components with limited lifespans.

Resolution and Frequency

■ When connected to PC

Resolution Refresh Rate DisplayPort
USB Type-C
HDMI
640×480
(480p)
59.9 / 60.0
720×480
(480p)
59.9 / 60.0
800×600 60.3
1024×768 60.0
1280×1024 60.0
1280×720
(720p)
59.9 / 60.0
1600×900 60.0
1920×1080
(1080p)
59.9 / 60.0
1920×1080 75.0

※ Please confirm that the connected PC is compatible with the resolution stated above.
※ Video signals with resolutions lower than the maximum display resolution will be enlarged.
※ All signals from PC must be non-interlaced.

Aspect Ratio (Screen Aspect Ratio)

Aspect Ratio 4:3, 5:4 Video 16:9 Video
Signal Format 480p 720p 1080p
Example of resolutions 640×480, 1280×1024 1280×720 1920×1080
Fixed Full-Screen display without changing aspect ratio


Expand Zoom input signal (Zoom)

※ When using a resolution other than the optimal resolution (Maximum resolution), image enlargement processing causes blurring around edges.

Supported Model

Supported PCs PC Window, Mac, Chromebook
Supported OS All OS, because it does not depend on the OS (except for OS that is not supported by the main unit)
Supported Game Consoles Nintendo Switch, PS5, PS4 Pro, PS4, XBOX Series X, XBOX Series S

Specifications

Model Number/ Cabinet Color LCD-C271DB-FX/Black
Panel Type TFT 27-inch wide/ADS
Panel Surface Treatment Anti-glare
Maximum Display Resolution 1920×1080
Pixel Pitch (mm×mm) 0.3114(H)×0.3114(V)
Display Area (mm×mm) 597.888(H)×336.312(V)
Maximum Display Colors Display Colors up to 1,677,000 colors
Viewing Angle Vertical Veiwing Angle: 178°
Horizeontal Viewing Angle: 178°
Maximum Brightness (Standard) 300cd/㎡
Contrast Ratio (Standard) 1000:1
Response Time 5ms[GTG]
※ 75Hz / Overdrive level 2 setting
Horizontal Scan Frequency (kHz) HDMI:31.5 ~ 83.9
DisplayPort:31.5 ~ 83.9
USB Type-C:31.5 ~ 83.9
Vertical Scan Frequency (Hz) HDMI:59.9 ~ 75.0
DisplayPort:59.9 ~ 75.0
USB Type-C:59.9 ~ 75.0
Maximum Refresh Rate (Hz)
"At Maximum Resolution"
75
Video Input Ports HDMI×1, DisplayPort×1, USB Type-C×1
USB Ports Upstream USB Type-C×1:USB 2.0, DisplayPort Alt Mode,
Power Delivery up to 65W(5V/3A, 9V/3A, 15V/3A, 20V/3.25A)
Downstream USB Std-A ×2: USB 2.0 (Maximum 5V/0.9A per port, for HUB)
USB Std-A ×1:USB 2.0(Maximum 5V/1A, for maintenance)
Audio Input Output Audio Input -
Speaker 2W+2W (Stereo)
Headphone Jack Stereo mini jack φ3.5mm
Audio Output -
Rated Voltage AC100~240V 50/60Hz (Built-in power supply)
Power Consumption Maximum 124W
During Normal Operation (On mode) 14.2W
Annual Electricity Consumption 46.3kWh
Standby Mode 0.5W
Power Management VESA DPM Compatible
Plug and Play VESA DDC2B
Dimensions
(W×D×H)
With Stand Approximately 613(W)×229(D)×395~525(H)mm ※ Excluding protruding parts
No Stand Approximately 613(W)×51(D)×370(H)mm ※ Excluding protruding parts
Three-view drawing File PDF
Weight With Stand 7.3kg
No Stand 5.0kg
Tilt Angle Up: 20° Down: 5°
Swivel Angle L: 45° R: 45°
Height Adjustment 130mm
Pivot (Rotation) L: 90° R: 90°
VESA Mount Interface ○(100mm×100mm)
※ The freestyle stand for this product is attached to the VESA mount interface
Security Slot (Kensington Security Slot)
Package Weight (kg) and Dimensions(W×D×H) 9.2kg /690(W)×210(D)×450(H)mm
Operating Temperature Range When Operating: 0℃~+40℃
When Storage: -20℃~+60℃
Operating Humidity Range 20%~80% (No condensation)
Estimated Assembly Time Approximately 5 minutes (For one adult) Time from unpacking to installation when using the included stand
Various Certifications / Legal Regulations VCCI Class B, RoHS Directive Compliance (10 Substances), International Energy Sar Program, MEPS
Accessaory Power cable (1.8m),HDMI cable (1.5m), stand, instruction manual
Warranty Period Period Warranty Period: 3 Years
※ Including panel and backlight. However, the usage time is limited to 30,000 hours. Usage time refer to the total amount of time that the screen is illuminated. Standby and power-off are not included in the usage time.

※ The appearance and specifications are subject to change without notice for improvement purposes.
※ There may be dead pixels (pixels that do not light up) or bright spots (pixels that remain lit) on LCD panel. This is the specification of the LCD panel and due to the LCD panel itself having over 99.999% effective pixels and about 0.001% pixel defects or bright spots. It is not a malfunction or defect.
※ Annual power consumption is calculated based on International Energy Star Program standards.
Annual power consumption (kWh) = (0.35 × PON + 0.65 × PSLEEP) × 24 × 365 / 1000
※ About continuous use: This product is not designed for continuous 24 hours use. Please refrain from using this product continuously for 24 hours to prevent accelerating the wear and tear of components with limited lifespans.

Resolution and Frequency

■ When connected to PC

Resolution Refresh Rate DisplayPort
USB Type-C
HDMI
640×480
(480p)
59.9 / 60.0
720×480
(480p)
59.9 / 60.0
800×600 60.3
1024×768 60.0
1280×1024 60.0
1280×720
(720p)
59.9 / 60.0
1600×900 60.0
1920×1080
(1080p)
59.9 / 60.0
1920×1080 75.0

※ Please confirm that the connected PC is compatible with the resolution stated above.
※ Video signals with resolutions lower than the maximum display resolution will be enlarged.
※ All signals from PC must be non-interlaced.

Aspect Ratio (Screen Aspect Ratio)

Aspect Ratio 4:3, 5:4 Video 16:9 Video
Signal Format 480p 720p 1080p
Example of resolutions 640×480, 1280×1024 1280×720 1920×1080
Fixed Full-Screen display without changing aspect ratio


Expand Zoom input signal (Zoom)

※ When using a resolution other than the optimal resolution (Maximum resolution), image enlargement processing causes blurring around edges.

Supported Model

Supported PCs PC Window, Mac, Chromebook
Supported OS All OS, because it does not depend on the OS (except for OS that is not supported by the main unit)
※ Resolution and frequency must be within the supported range
Supported Game Consoles PS5, PS4 Pro, PS4, Nintendo Switch 2 (only HDMI), Nintendo Switch (only HDMI), Xbox Series X, Xbox Series S

Specifications

Size 23.8-inch
Model Number/ Cabinet Color LCD-C242SDB-F/Black
Panel Type TFT 23.8-inch wide
Panel Technology ADS
Panel Surface Treatment Anti-glare
Maximum Display Resolution 1920×1080
Pixel Pitch (mm×mm) 0.2745(H)×0.2745(V)
Display Area (mm×mm) 527.04(H)×296.46(V)
Maximum Display Colors Display Colors up to 1,677,000 colors
Viewing Angle Vertical Veiwing Angle: 178°
Horizeontal Viewing Angle: 178°
Maximum Brightness (Standard) 250cd/㎡
Contrast Ratio (Standard) 1300:1
Response Time 5ms[GTG]
※ 100Hz / Overdrive level 2 setting
Horizontal Scan Frequency (kHz) HDMI:31.5 ~ 112.5
DisplayPort:31.5 ~ 110.0
USB Type-C:31.5 ~ 110.0
Vertical Scan Frequency (Hz) HDMI:59.9 ~ 100.0
DisplayPort:59.9 ~ 100.0
USB Type-C:59.9 ~ 100.0
Maximum Refresh Rate (Hz)
"At Maximum Resolution"
100
RS-232C port -
LAN port -
Video Input Ports HDMI×1, DisplayPort×1, USB Type-C×1
USB Ports PC connect
(Upstream)
USB Type-C×1:USB 5Gbps(USB 3.2 Gen1), DisplayPort Alt Mode, USB PD 5V=3A / 9V=3A / 15V=3A / 20V=3.25A (Maximum 65W)
USB HUB
(Downstream)
USB-A×2:USB 5Gbps(USB3.2 Gen1)(Maximum 5V/0.9A)
USB port(Other) USB-A "USB 1.5A FW UPDATE":For power supply 5V/1.5A(USB BC1.2)and maintenance
Audio Input Output Audio Input -
Speaker 2W+2W (Stereo)
Headphone Jack Stereo mini jack φ3.5mm
Audio Output -
Rated Voltage AC100~240V 50/60Hz (Built-in power supply)
Power Consumption Maximum 122W
During Normal Operation (On mode) 12.4W
Annual Electricity Consumption 40.4kWh
Standby Mode 0.4W
Plug and Play VESA DDC2B
Dimensions
(W×D×H)
With Stand Approximately 540×227×443~538mm ※ Excluding protruding parts
No Stand Approximately 540×51×328mm ※ Excluding protruding parts
Three-view drawing File PDF
Weight With Stand 6.1kg
No Stand 4.1kg
Tilt Angle Up: 23° Down: 5°
Swivel Angle L: 45° R: 45°
Height Adjustment 150mm
Pivot (Rotation) L: 90° R: 90°
VESA Mount Interface ○(100mm×100mm)
※ This product is equipped with VESA One-Touch Adapter attached to the VESA Mount Interface
Small-size PC attachment hole
(Mounting requirements of PC)
・VESA Mount Interface:75mm×75mm
・Total allowable mounting weight (Including PC, mounting brackets, cables, etc.): 1.5 kg or less
・Screw size: M4 × 30 mm or longer (May vary depending on the thickness of the VESA mount)
Security Slot (Kensington Security Slot)
Package Weight (kg) and Dimensions(W×D×H) 7.7kg/605(W)×175(D)×444(H)mm
Operating Temperature Range When Operating: 0℃~+40℃
When Storage: -20℃~+60℃
Operating Humidity Range 20%~80% (No condensation)
Estimated Assembly Time Approximately 4 minutes (For one adult) Time from unpacking to installation when using the included stand
Built-in Technology HDR -
Variable Refresh Rate -
Flicker-Free
Blue Light Reduction
Others -
Various Certifications / Legal Regulations VCCI Class B, RoHS Directive Compliance (10 Substances), International Energy Sar Program, MEPS
Accessaory Power cable (1.8m),HDMI cable (1.5m), stand, instruction manual
Warranty Period Period Warranty Period: 3 Years
※ Including panel and backlight. However, the usage time is limited to 30,000 hours. Usage time refer to the total amount of time that the screen is illuminated. Standby and power-off are not included in the usage time.

※ The appearance and specifications are subject to change without notice for improvement purposes.
※ Annual power consumption is calculated based on International Energy Star Program standards.
Annual power consumption (kWh) = (0.35 × PON + 0.65 × PSLEEP) × 24 × 365 / 1000
※ This product contains limited-lifespan components (power supply unit/AC adapter, mainboard, electrolytic capacitors, LCD panel,/backlight, etc).
The recommended replacement time for parts with limited lifespan varies depending on usage frequency and conditions. Under normal use at 25℃, this product lasts approximately 5 years with about 18 hours of daily use.
However, this is only a guideline and does not guarantee failure free operation or free repairs. Depending on the conditions of use, such as proloned continuous use, parts replacement(at a cherge) may be required prematurely or even within the products warranty period.
This product is not designed for 24-hour continuous operation. If used continuously for 24 hours, it will be excluded from the standard warranty and subject to paid repairs within the product warranty period.

Resolution and Frequency

■ When PC connected

Resolution Refresh Rate HDMI DisplayPort
USB-C
640×480
(480p)
59.9 / 60.0
720×480
(480p)
59.9 / 60.0
800×600 60.3
1024×768 60.0
1280×1024 60.0
1280×720
(720p)
59.9 / 60.0
1920×1080
(1080p)
59.9 / 60.0
1920×1080 100

※ Please confirm that the connected PC is compatible with the resolution stated above.
※ Video signals with resolutions lower than the maximum display resolution will be enlarged.
※ All signals from PC must be non-interlaced.

Supported Model

Supported PCs PC Window, Mac, Chromebook
Supported OS All OS, because it does not depend on the OS (except for OS that is not supported by the main unit)
※ Resolution and frequency must be within the supported range
Supported Game Consoles PS5, PS4 Pro, PS4, Nintendo Switch 2 (only HDMI), Nintendo Switch (only HDMI), Xbox Series X, Xbox Series S

Specifications

Size 23.8-inch 27-inch
Model Number/ Cabinet Color LCD-C242SDB/Black LCD-C272SDB/Black
Panel Type TFT 23.8-inch wide TFT 27-inch wide
Panel Technology ADS
Panel Surface Treatment Anti-glare
Maximum Display Resolution 1920×1080
Pixel Pitch (mm×mm) 0.2745(H)×0.2745(V) 0.3114(H)×0.3114(V)
Display Area (mm×mm) 527.04(H)×296.46(V) 597.888(H)×336.312(V)
Maximum Display Colors Display Colors up to 1,677,000 colors
Viewing Angle Vertical Veiwing Angle: 178°
Horizeontal Viewing Angle: 178°
Maximum Brightness (Standard) 250cd/㎡
Contrast Ratio (Standard) 1300:1 1300:1
Response Time 5ms[GTG]
※ 100Hz / Overdrive level 2 setting
Horizontal Scan Frequency (kHz) HDMI:31.5 ~ 112.5
DisplayPort:31.5 ~ 110.0
USB Type-C:31.5 ~ 110.0
Vertical Scan Frequency (Hz) HDMI:59.9 ~ 100.0
DisplayPort:59.9 ~ 100.0
USB Type-C:59.9 ~ 100.0
Maximum Refresh Rate (Hz)
"At Maximum Resolution"
100
RS-232C port -
LAN port -
Video Input Ports HDMI×1, DisplayPort×1, USB Type-C×1
USB Ports PC connect
(Upstream)
USB Type-C×1:USB 5Gbps(USB 3.2 Gen1), DisplayPort Alt Mode, USB PD 5V=3A / 9V=3A / 15V=3A / 20V=3.25A (Maximum 65W)
USB HUB
(Downstream)
USB-A×2:USB 5Gbps(USB3.2 Gen1) (Maximum 5V/0.9A)
USB port(Other) USB-A "USB 1.5A FW UPDATE":For power supply 5V/1.5A(USB BC1.2)and maintenance
Audio Input Output Audio Input -
Speaker 2W+2W (Stereo) 2W+2W (Stereo)
Headphone Jack Stereo mini jack φ3.5mm
Audio Output -
Rated Voltage AC100~240V 50/60Hz (Built-in power supply)
Power Consumption Maximum 122W 130W
During Normal Operation (On mode) 12.4W 14.2W
Annual Electricity Consumption 40.4kWh 45.9kWh
Standby Mode 0.4W 0.4W
Plug and Play VESA DDC2B
Dimensions
(W×D×H)
With Stand Approximately 540×215×407mm
※ Excluding protruding parts
613×235×454mm
※ Excluding protruding parts
No Stand Approximately 540×51×328mm
※ Excluding protruding parts
613×51×370mm
※ Excluding protruding parts
Three-view drawing File PDF
Weight With Stand 4.6kg 5.6kg
No Stand 4.1kg 4.9kg
Tilt Angle Up: 20° Down: 5°
Swivel Angle -
Height Adjustment -
Pivot (Rotation) -
VESA Mount Interface ○(100mm×100mm)
Mini PC Attachment Hole (Mounting requirements of PC) -
Security Slot (Kensington Security Slot)
Package Weight (kg) and Dimensions(W×D×H) 5.9kg/601(W)×142(D)
×440(H)mm
7.4kg/687(W)×148(D)
×512(H)mm
Operating Temperature Range When Operating: 0℃~+40℃
When Storage: -20℃~+60℃
Operating Humidity Range 20%~80% (No condensation)
Estimated Assembly Time Approximately 3 minutes (For one adult) Time from unpacking to installation when using the included stand
Built-in Technology HDR -
Variable Refresh Rate -
Flicker-Free
Blue Light Reduction
Others -
Various Certifications / Legal Regulations VCCI Class B, RoHS Directive Compliance (10 Substances), International Energy Sar Program, MEPS
Accessaory Power cable (PSE compliant, approx 1.8m), HDMI cable (approx 1.5m), USB cable (C-C USB 5Gbps(USB 3.2 Gen1), approx 1.5m), Instruction Manual, stand neck、stand, Stand Neck mounting screws×2 Power cable (PSE compliant, approx 1.8m), HDMI cable (approx 1.5m), USB cable (C-C USB 5Gbps (USB 3.2 Gen1), approx 1.5m), Instruction Manual, stand
Warranty Period Period Warranty Period: 3 Years
※ Including panel and backlight. However, the usage time is limited to 30,000 hours. Usage time refer to the total amount of time that the screen is illuminated. Standby and power-off are not included in the usage time.

※ The appearance and specifications are subject to change without notice for improvement purposes.
※ Annual power consumption is calculated based on International Energy Star Program standards.
Annual power consumption (kWh) = (0.35 × PON + 0.65 × PSLEEP) × 24 × 365 / 1000
※ This product contains limited-lifespan components (power supply unit/AC adapter, mainboard, electrolytic capacitors, LCD panel,/backlight, etc).
The recommended replacement time for parts with limited lifespan varies depending on usage frequency and conditions. Under normal use at 25℃, this product lasts approximately 5 years with about 18 hours of daily use.
However, this is only a guideline and does not guarantee failure free operation or free repairs. Depending on the conditions of use, such as proloned continuous use, parts replacement(at a cherge) may be required prematurely or even within the products warranty period.
This product is not designed for 24-hour continuous operation. If used continuously for 24 hours, it will be excluded from the standard warranty and subject to paid repairs within the product warranty period.

Resolution and Frequency

■ When PC connected

Resolution Refresh Rate HDMI DisplayPort
USB-C
640×480
(480p)
59.9 / 60.0
720×480
(480p)
59.9 / 60.0
800×600 60.3
1024×768 60.0
1280×1024 60.0
1280×720
(720p)
59.9 / 60.0
1920×1080
(1080p)
59.9 / 60.0
1920×1080 100

※ Please confirm that the connected PC is compatible with the resolution stated above.
※ Video signals with resolutions lower than the maximum display resolution will be enlarged.
※ All signals from PC must be non-interlaced.
